In order to obtain a visual representation of device placement throughout major systems and interact with the devices directly, you can rely on the Systems module.

  1. Select the building of your choice by clicking “Sites” on the left Main Navigation bar.

  2. From the left main menu select “Systems”.

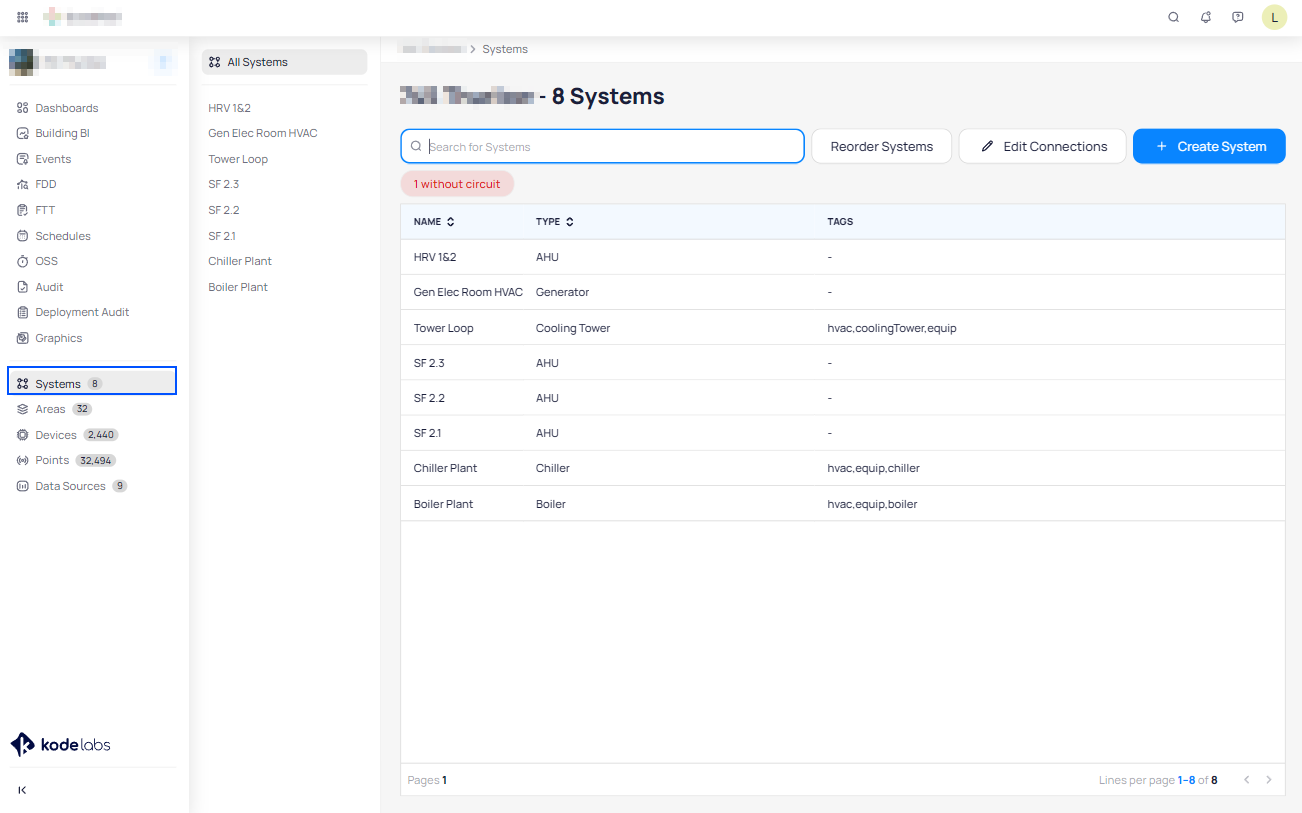

  3. A page with the list of all Systems will show up.

  4. Search and Select a System.



View Options

Upon selecting the System you will be directed to the System Details View. At the bottom of the right navbar you can change your point of view to:

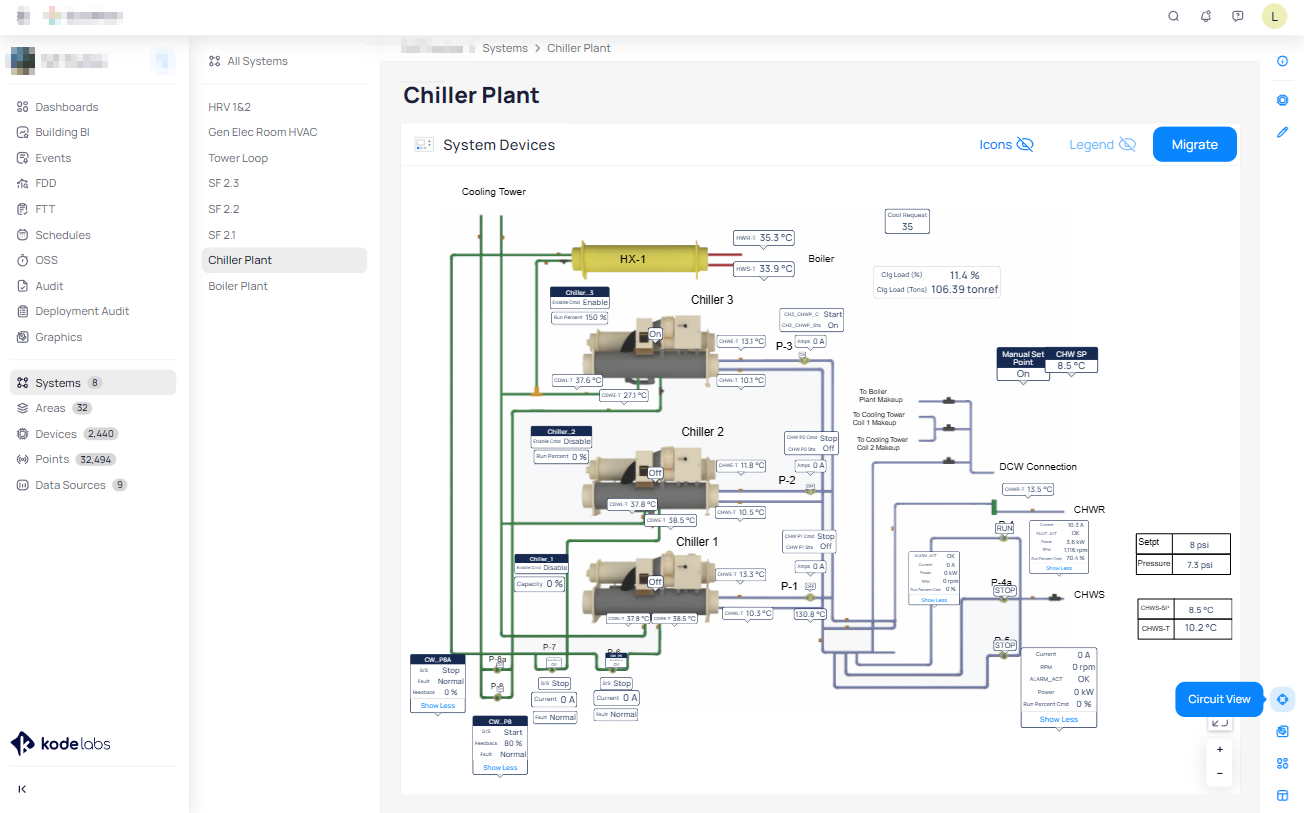

  • Circuit View - Graphical Overview of the system.

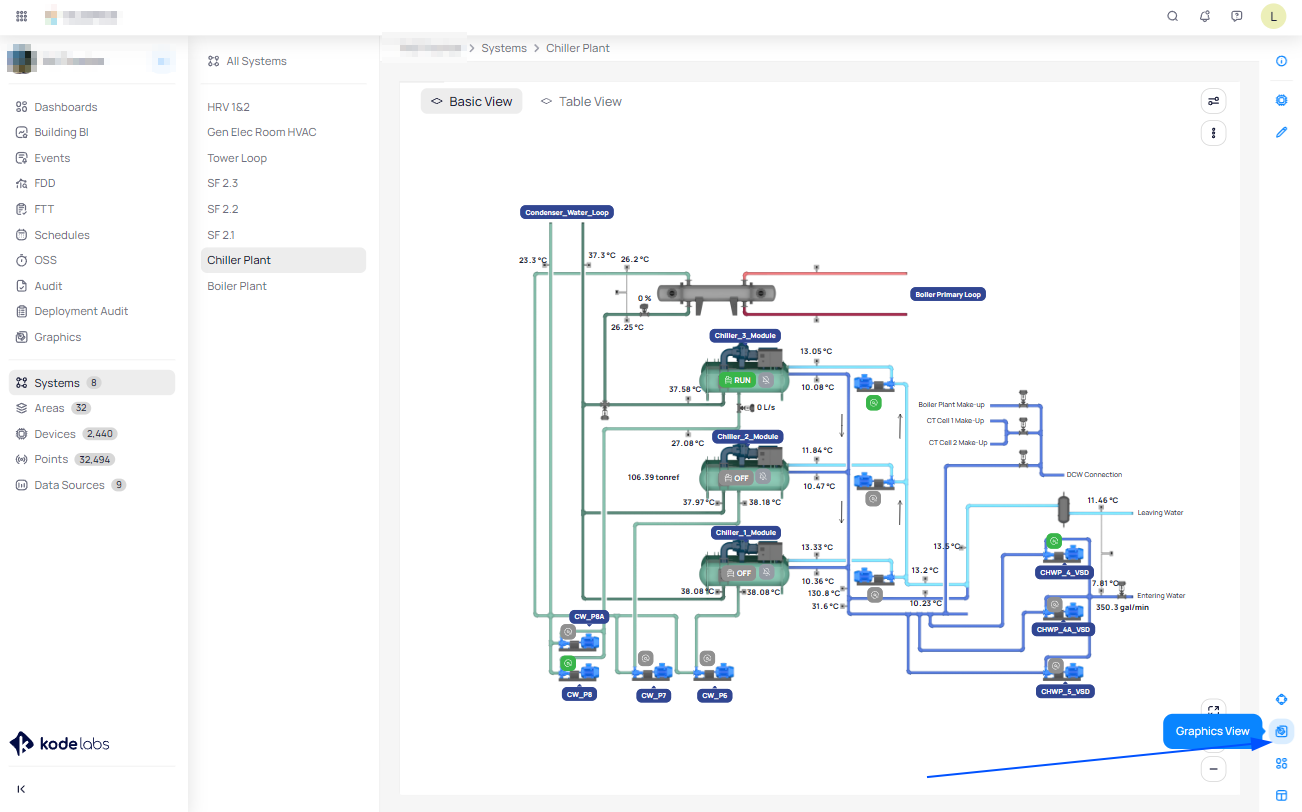

  • Graphics View - from where you can see the system in a new graphical view



  • Dashboard View - from where you can see all System Points visualized on charts.

  • Widget View - from where you can see all System Devices and their Points.

System Details

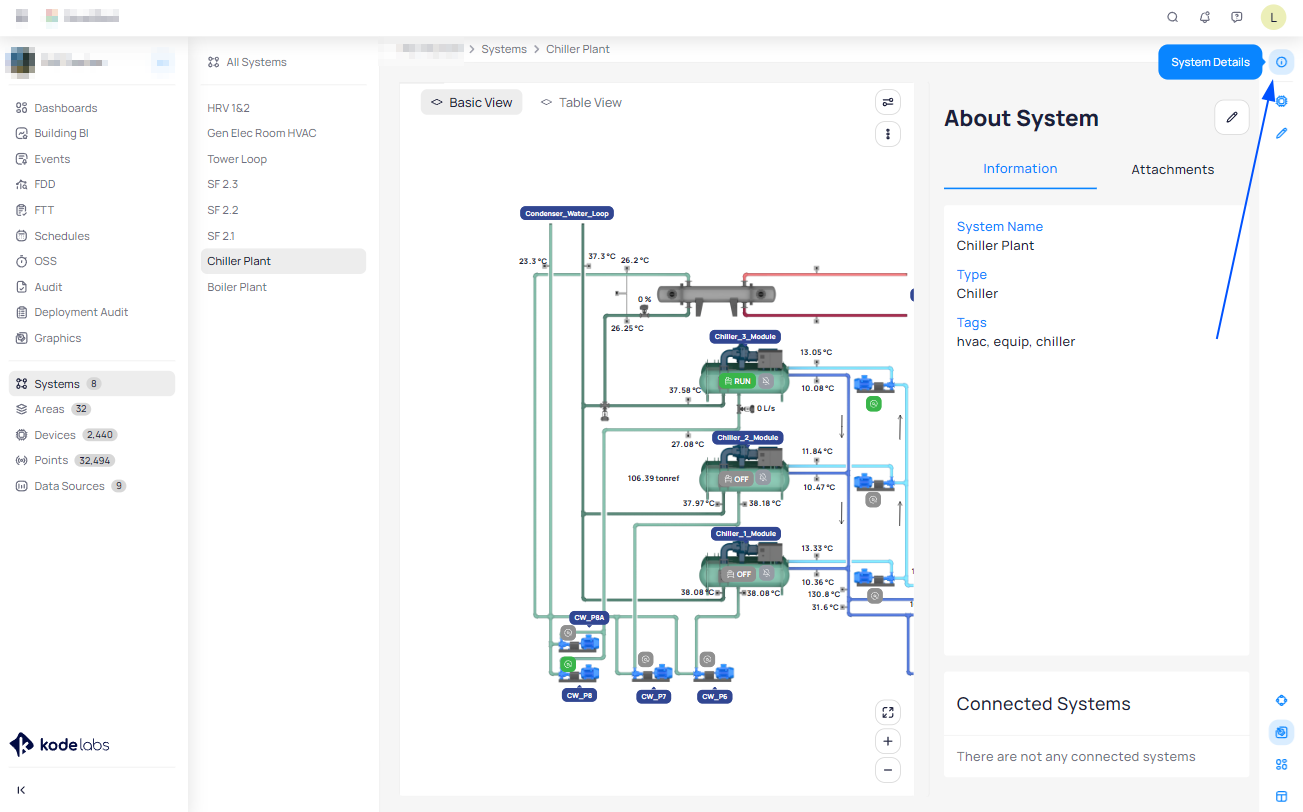

  •  Click on the(Information) icon to see System Information such as:

    • System Name

    • Type

    • Tags and

    • Connected Systems if applicable.

  • And System Attachments such as:

    • Photos

    • Documents

    • Notes



System Information

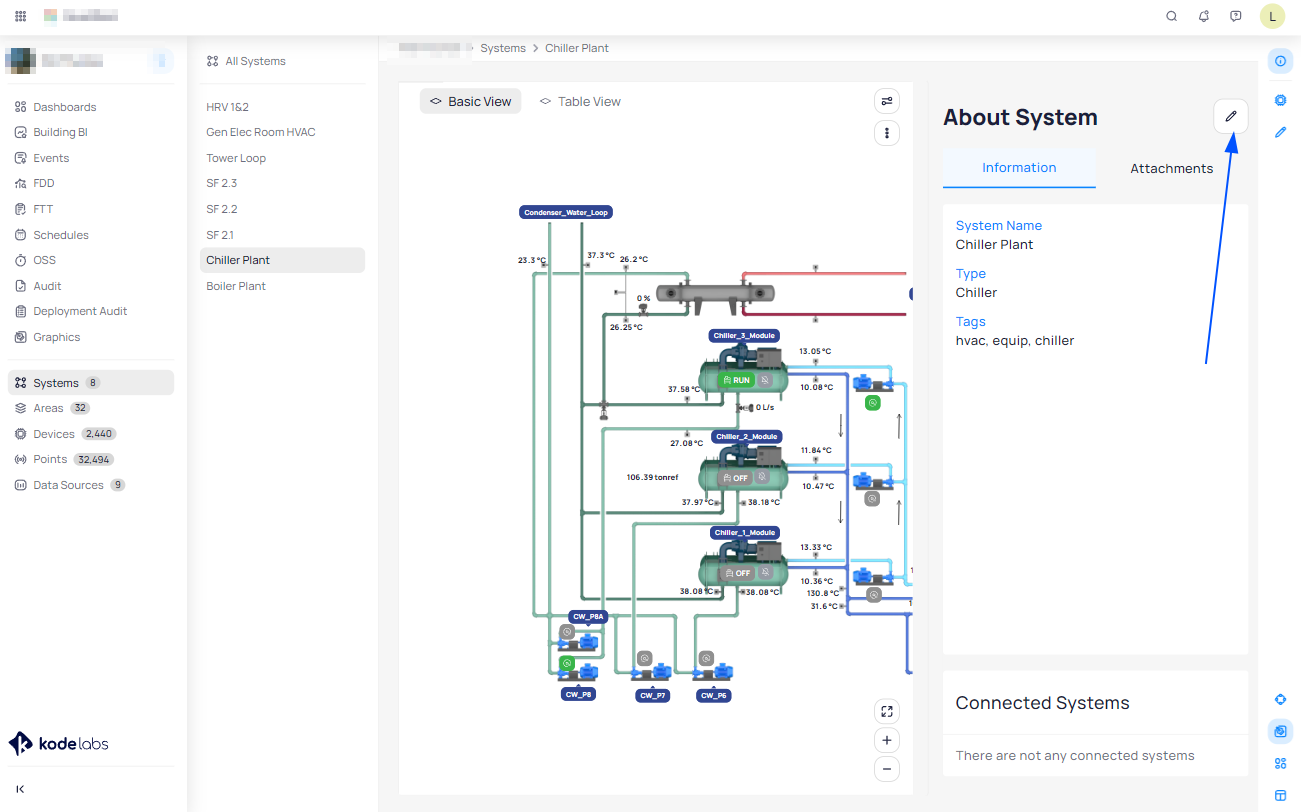

You can edit System Information by clicking on Editicon, located at the top right of the System Details popup page.

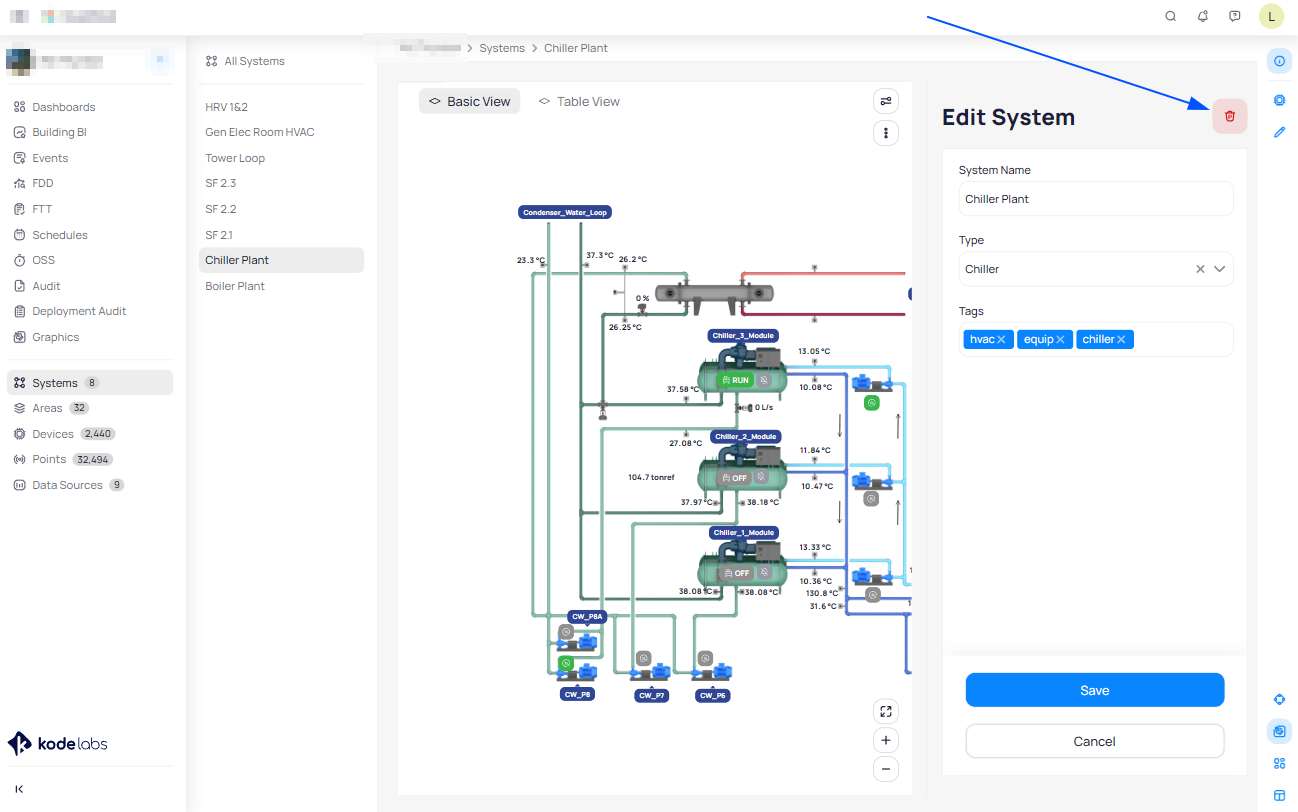

  • To Delete a System - Click on the Delete icon which will appear once clicking on the Edit icon.



System Attachments

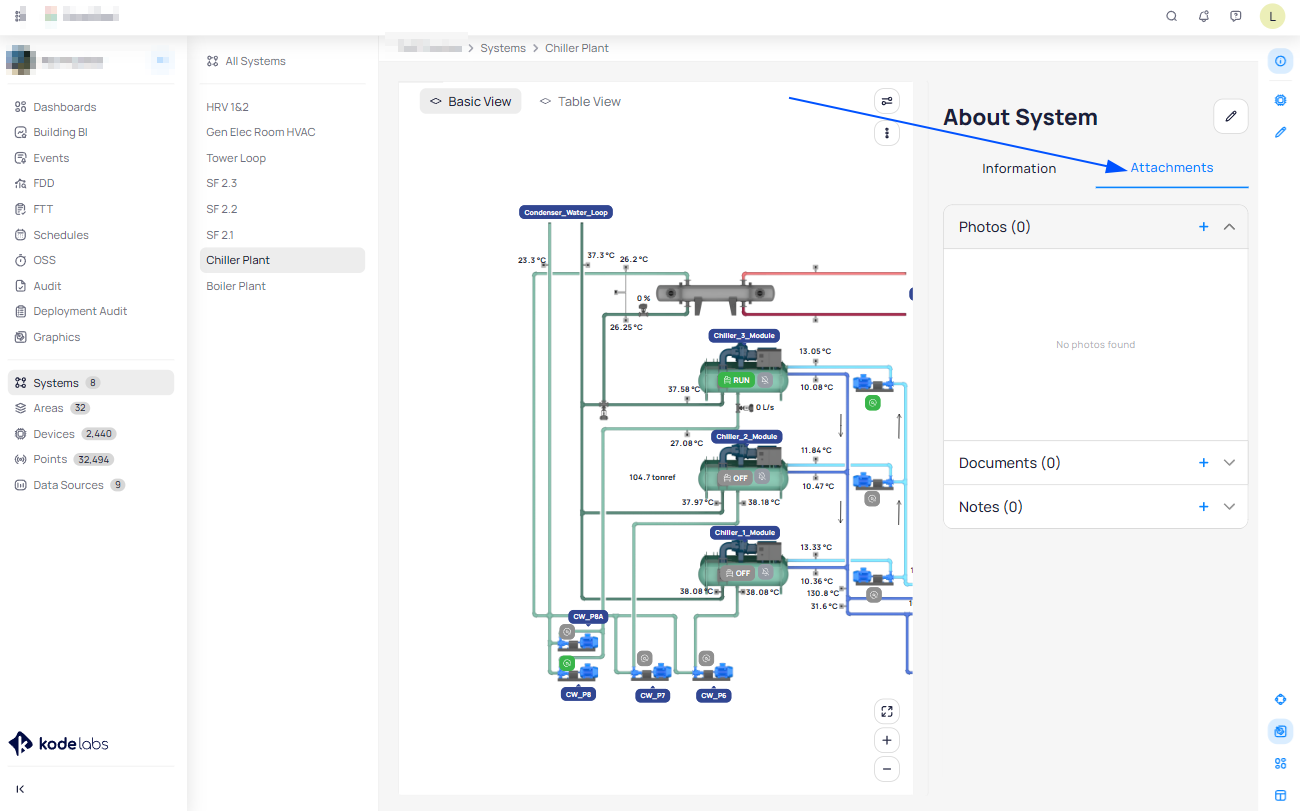

You can upload Photos, Documents and take Notes by going to the Attachments tab of the System Details popup page.



System Devices

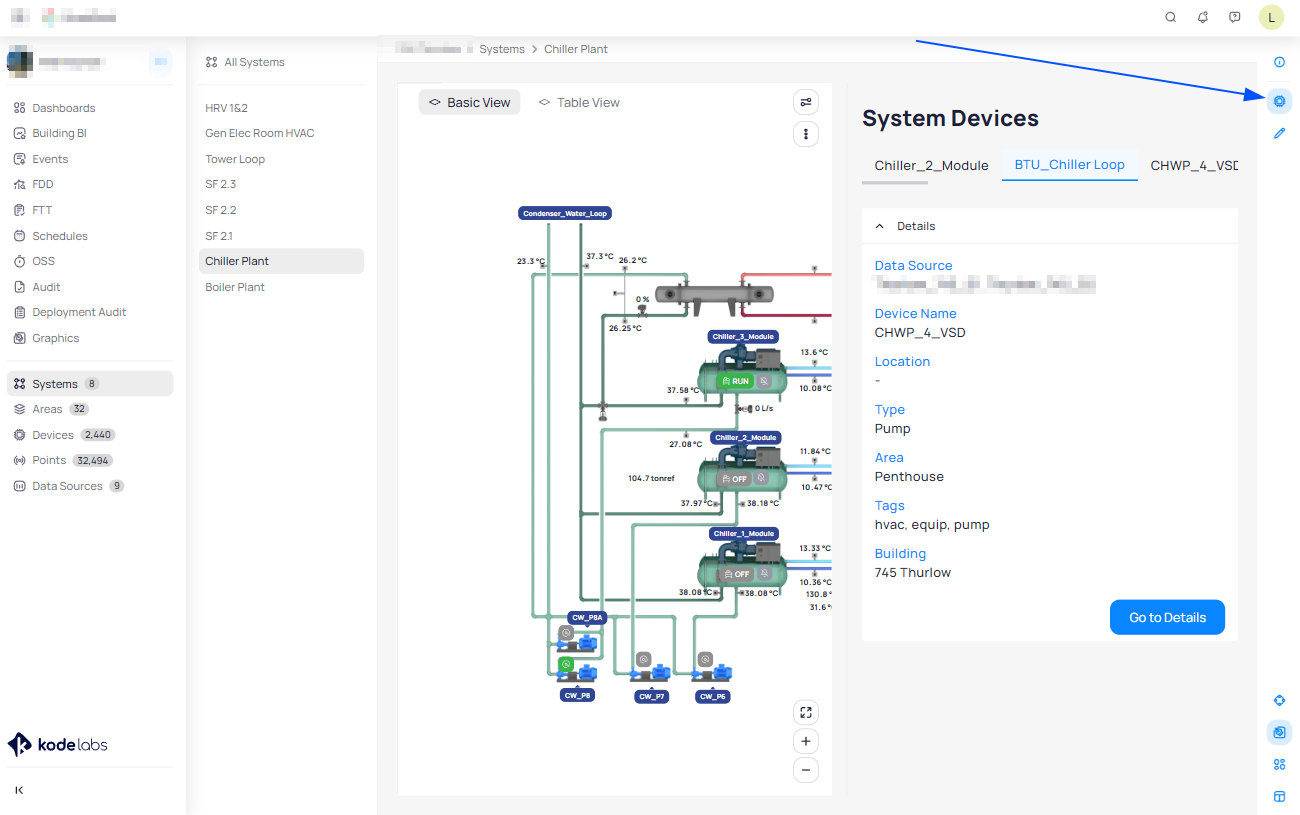

Click on the Devices(chip) icon to see all Devices associated with the system.



Edit Content

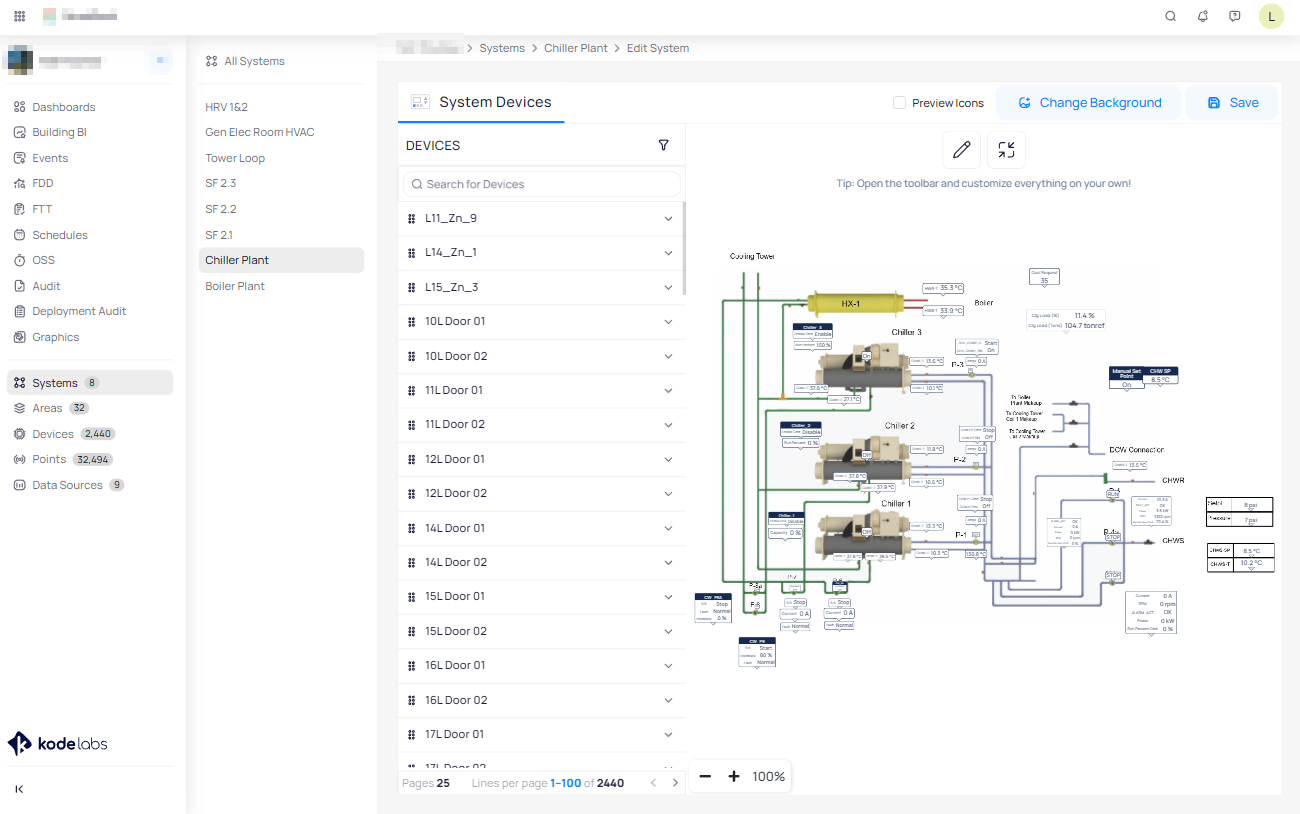

  • To Edit system graphic and device placement click on (Pencil) icon.

  • Once clicking it you will be directed to the system edit mode from where you can modify and add more devices to the system graphic.

  • Check the System Configuration article for more information on how to upload system graphic and add system devices.
