Navigating to Device Details - Mobile App

Navigating to Device Details - Mobile App

Device Details helps you to determine device performance, status, history and allows you to interact with devices in order to adjust their functioning with the aim of increasing optimum performance.

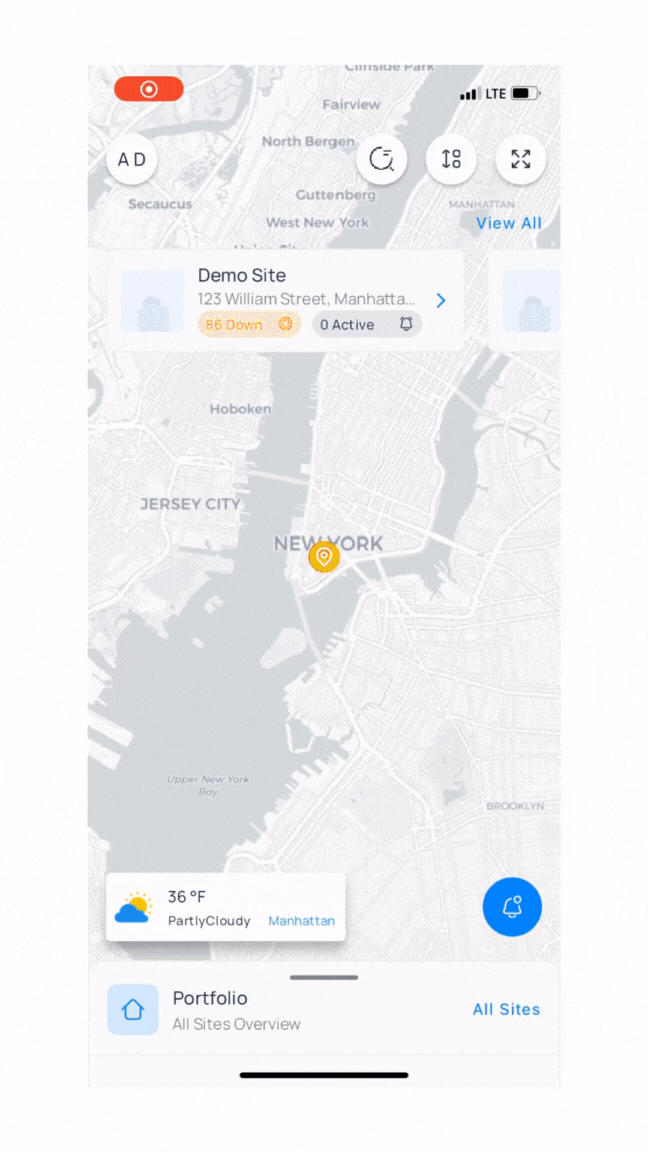

There are a few ways on how you can get to device details from your site view:


  • Via BuilMenu of the building of your choice > Devices > Select Desired Device > Device Details

  • Via Areas > Select Floor > Click on Device Name > Device Details

  • Searching for a device by its name via the Search Function and selecting it will take you directly to its Device Details page

On device details you will see all points grouped by type (e.g Temperature, Pressure, Fan). To see them on the graph, select the points you want to see by checking the checkbox next to each point and then click the button on the left side of each point section. Upon enabling, the visualization will show a trend of the point depending on the type of the point (i.e. graph, boolean, etc.)


On the right side of some points you will see a write icon. Selecting it will take you to the Write Point menu where you can modify the values based on your preferences.

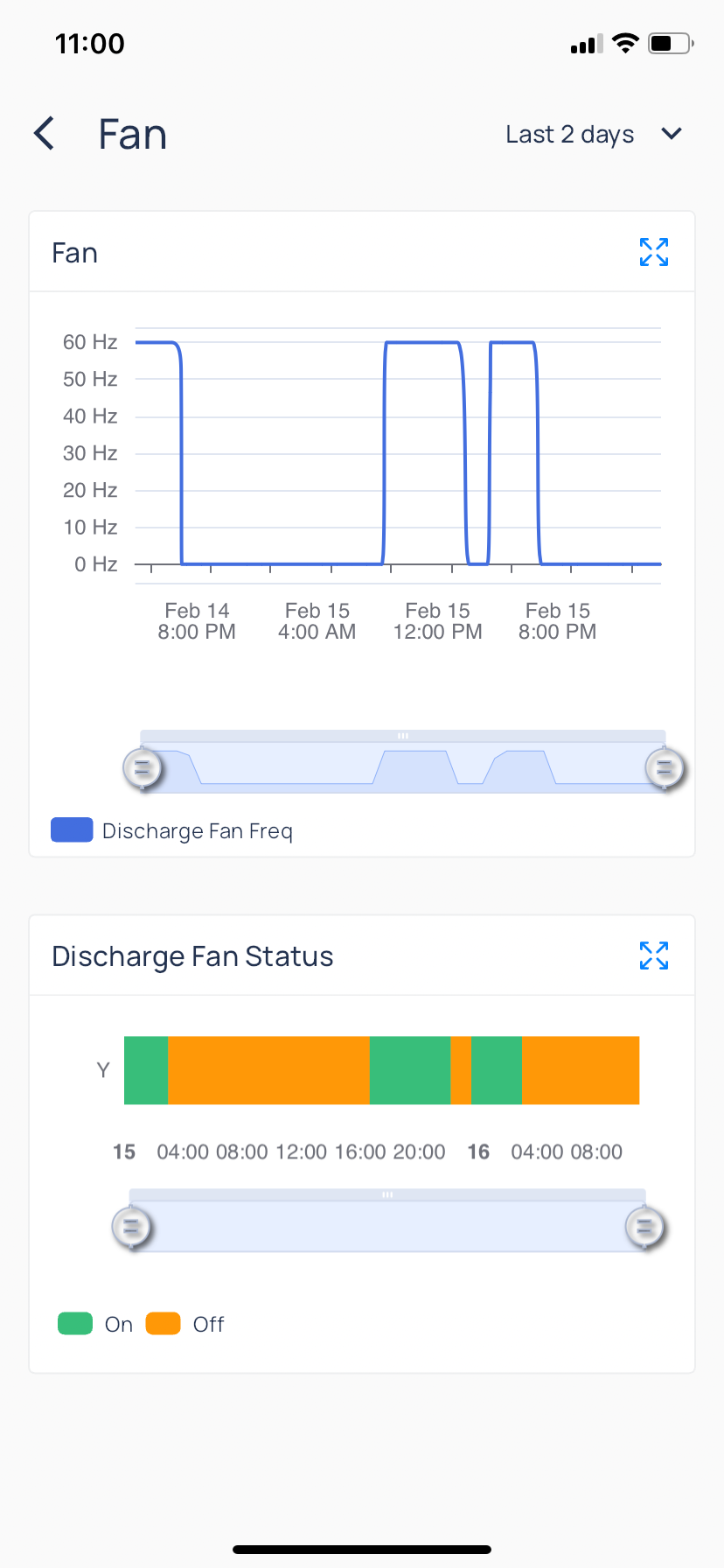

Device History


History will show a historical performance of the selected device. For example in the case of a HVAC device it will show the temperature history. The default time period to view the history is 2 days; however, this can be modified to longer and shorter lengths in the upper right hand corner of the screen.


Hovering upon the chart will show you the name of the point represented in color, its value as well as the exact time for the given value.

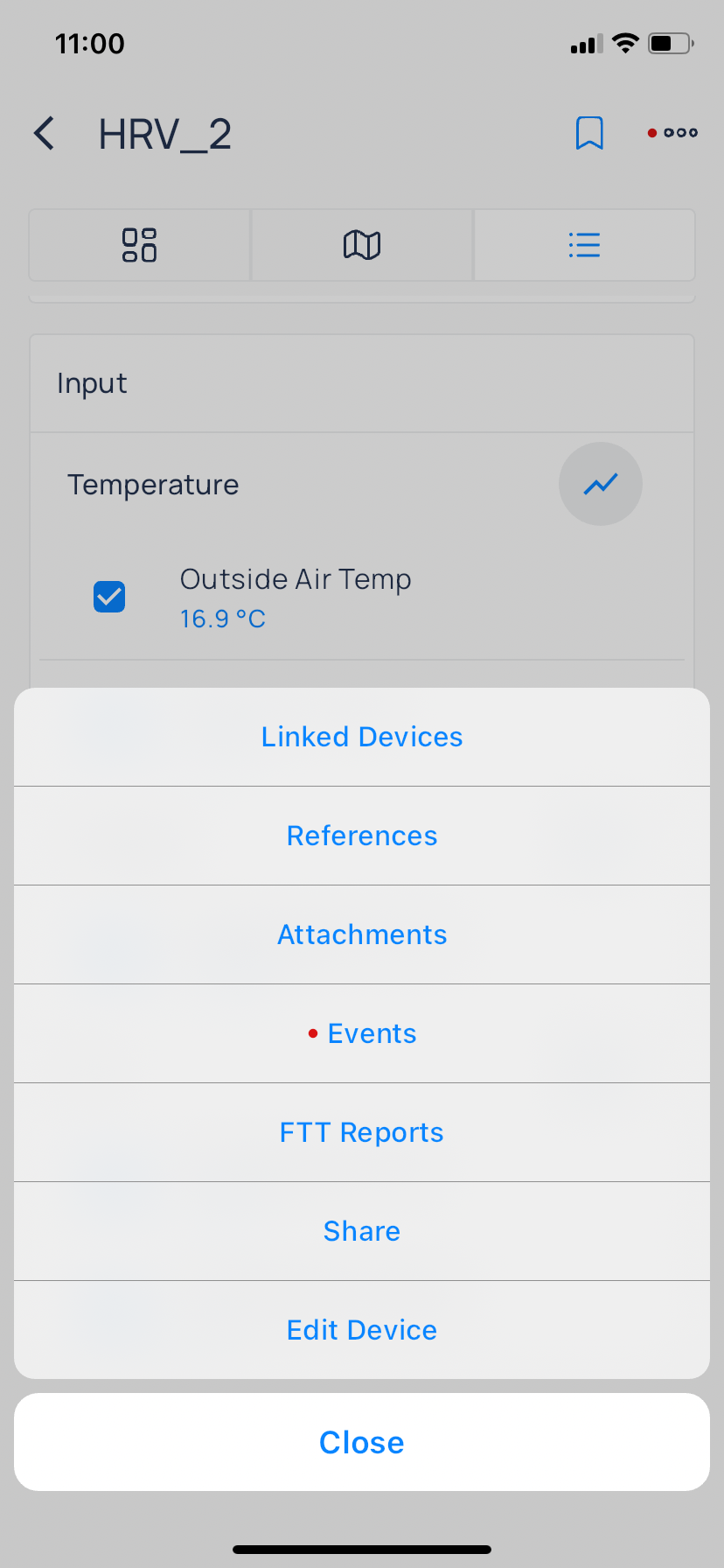

Top Right Menu


The Top Right Menu inside of device details has multiple options including:


  • Linked Devices

    • Linked Devices will show the myMSI to KODE OS linked devices to the selected device.

  • References

    • References will show the associated devices to the selected device.

  • Attachments

    • Here you can add notes and upload attachments related to the device.

  • Events

    • Here you can find the events related to the device.

  • FTT Reports

    • Here you can if there is any FTT report related to the device.

  • Active Events

    • View and manage all active events related to the selected device.

  • Share

    • Share the device link with others.

  • Edit

    • Edit Devices name, location, type, area and tags
